See our description file and videos with detailed step-by-step instructions to establish a RS232 or USB-SPP connection.

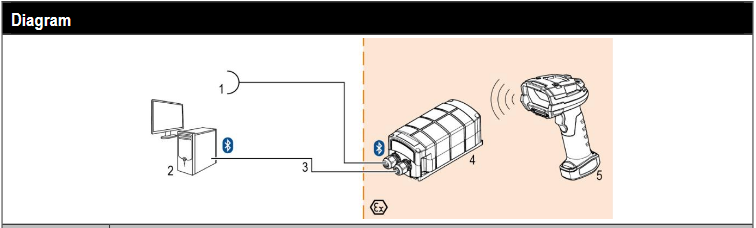

Necessary equipment:
- AC-Power cord
- Host PC with interface and software for data processing
- Connection cable for RS232 or USB-SPP
- Universal supply module in -NI or -IS version
- Bluetooth handheld scanner BCS3678ex-NI or BCS3678ex-IS
Article - Step-by-step connection examples of BCS36x8ex series
Video: Connection of the handheld scanner BCS3678ex-IS (Zone 1) via USM and USB-SPP interface to a PC.
- See chapter 7 in the step-by-step example.
required equipment:
- corded handheld scanner type: 17-A1S4-1HP0
- Universal supply module - corded (USM) type: 17-A1Z0-0019
- further required equipment see notes in the video
Download Video with German subtitles
Download Video with English subtitles
Video: Connection of the handheld scanner BCS3678ex-IS (Zone 1) via USM and RS232 interface to a PC.
- See chapter 6 in the step-by-step example.
required equipment:
- corded handheld scanner type: 17-A1S4-1HP0
- Universal supply module - corded (USM) type: 17-A1Z0-0019
- further required equipment see notes in the video
Download Video with German subtitles
Download Video with English subtitles
Video: Connection of the handheld scanner BCS3678ex-NI (Zone 2/22/Division 2) via USM and USB-SPP interface to a PC.
- See chapter 7 in the step-by-step example.
required equipment:
- corded handheld scanner type: B7-A2S4-1HP0 or B7-A2S4-1ER0
- Universal supply module - corded (USM) type: B7-A2Z0-0043xxxx
- further required equipment see notes in the video
Download Video with German subtitles
Download Video with English subtitles
Video: Connection of the handheld scanner BCS3678ex-NI (Zone 2/22/Division 2 ) via USM and RS232 interface to a PC.
- See chapter 6 in the step-by-step example.
required equipment:
- corded handheld scanner type: B7-A2S4-1HP0 or B7-A2S4-1ER0
- Universal supply module - corded (USM) type: B7-A2Z0-0043xxxx
- further required equipment see notes in the video
