See our description file and videos with detailed step-by-step instructions to establish a USB-HID or USB-SPP (serial port profile) connection.

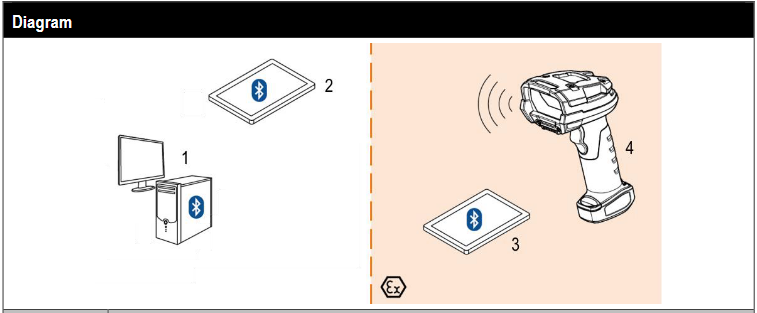

Necessary equipment:

  1. Host PC with interface and software for data processing
  2. Mobile device with Bluetooth for non-hazardous areas (e.g. Agile S tablet PC or other device with Bluetooth)
  3. Mobile device with Bluetooth for potentially explosive atmospheres (e.g. BARTEC ET6xEX2, Agile S NI or Agile X IS tablet PC, or other)
  4. Bluetooth handheld scanner BCS3678ex-NI or BCS3678ex-IS

 Article - Step-by-step connection examples of BCS36x8ex series


Note:

A compatible charger is required to charge the battery or scanner.

required equipment:

EquipmentZone 2/22/Division 2Zone 1/21
4-slot battery charging stationG7-A0Z0-0013
17-A1Z0-0013

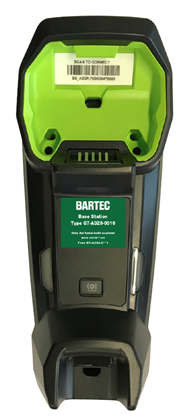

Base stationG7-A0Z0-0010

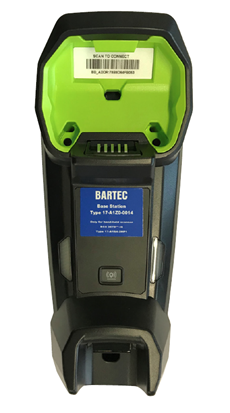

17-A1Z0-0014
  • further required equipment see datasheet or user manual


The following videos were created based on the BCS3678ex-NI version.
The connection can also be made using the appropriate equipment belonging to Zone 1/21 Ex-approval.

(This requires the use of the corresponding compatible accessories.)



Video: Connection of the handheld scanner BCS3678ex-NI (Zone 1/21) with other Bluetooth device and USB-HID interface to a PC.

  • See chapter 10 in the step-by-step example.

Download Video with German subtitles

Download Video with English subtitles



Connection of the handheld scanner BCS3678ex-NI (Zone 1/21) with other Bluetooth device  and USB-SPP interface to a PC.

  • See chapter 11 in the step-by-step example.
