The Agile S and Agils NI can be reset by pressing the reset button.
The button is located in the interface compartment.

Note: Only perform the reset outside the hazardous area, as the compartment must be closed in the hazardous area.

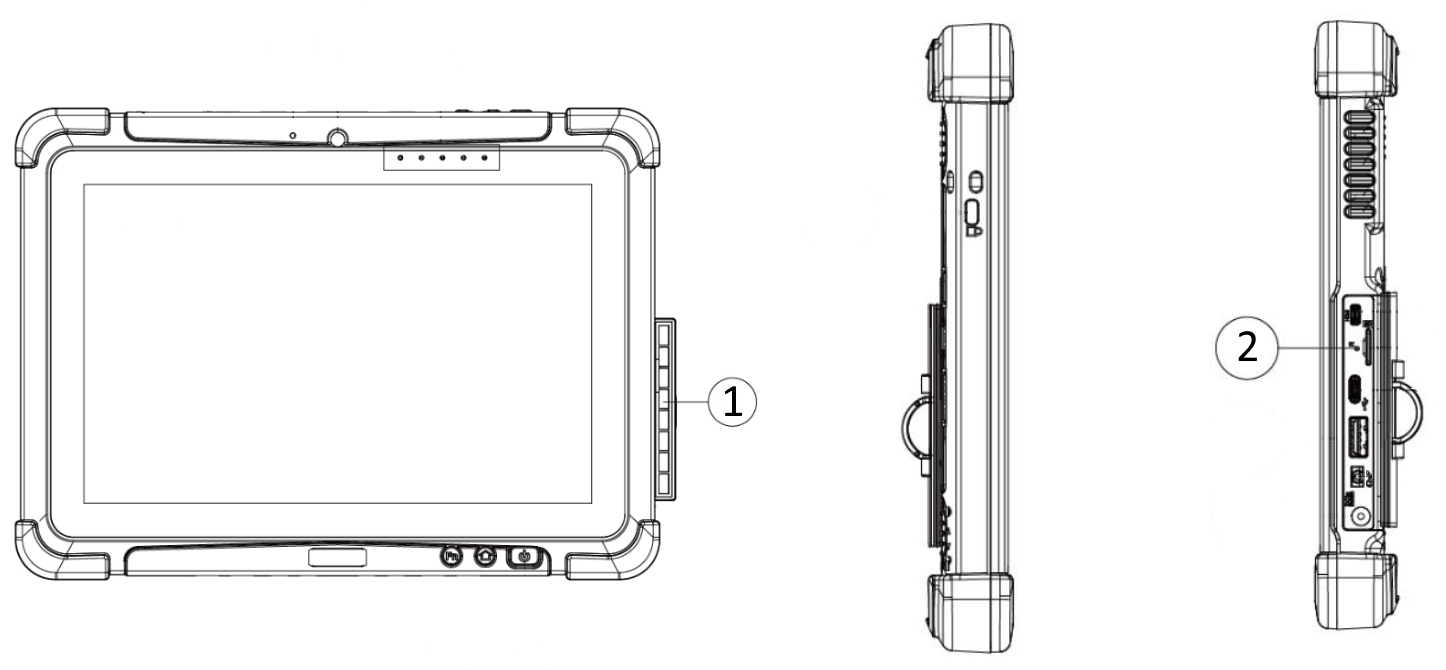

  1. = interface compartment
  2. = reset button
    When the device is switched on, press the reset button with a tool. For example, a thin screwdriver, paper clip, or similar object.



Further information on the reset options:
See the user manual
  • Chapter 2.3 location of the reset button
  • Chapter 5.3 Using Recovery Wizard to Restore Computer
    Only by use of Windows 10 IoT Enterprise CBB
    Other operating system requires installation of operating system from external source.
    See article operating system
