The supply module Ex i enables a scanner to be operated directly in the Ex-area and the data to be transferred to another Ex i PC/Host System in the Ex area.

The supply module Ex i has a connection compartment on the output side for mains connection in Ex e and data cable in Ex i version.


Important is:

  • For the mains connection an Ex e compliant cable installation and its connection.
  • For the data line in Ex i version, the Ex i values of both systems must be compatible to each other. The cable routing and connection must conform to the applicable installation guidelines for Ex i.
  • The Ex-relevant values of the supply module Ex i are listed in the certificate and in the BARTEC user manual chapter 4.4.2: Ex-relevant values.


Please read the BARTEC user manual for more information.

Reference chapters.

  • 3.7 Supply module Ex i corded
  • 3.8 Supply module Ex i Bluetooth
  • 4.1.5 Supply module Ex i for BCS3608ex-IS (Typ: 17-A1Z0-0025/****)
  • 4.1.6 Supply module Ex i for BCS3678ex-IS (Type: 17-A1Z0-0028/****)
  • 4.4.2 Connection of supply module Ex i to other Ex systems
  • 6.6 Supply module (covers universal supply module (Ex e) and supply module Ex i)
  • 6.10.1.3 Corded Hand-held sacnner BCS3608ex-IS via supply module Ex i
  • 6.10.2.2 Bluetooth Hand-held scanner BCS3678ex-IS via supply module Ex i
  • 6.11 Universal supply module and supply module Ex i
  • 9.5.2 Default values of the universal supply modules
  • 9.6.3 Programming BCS3608ex with supply module Ex i - corded
  • 9.6.4 Programming BCS3678ex with supply module Ex i - Bluetooth



The available supply module Ex i:

17-A1Z0-0025 - Corded - Supply Module Ex i
(Zone 1/21 only)

17-A1Z0-0028 - Bluetooth - Supply Module Ex i

(Zone 1/21 only)

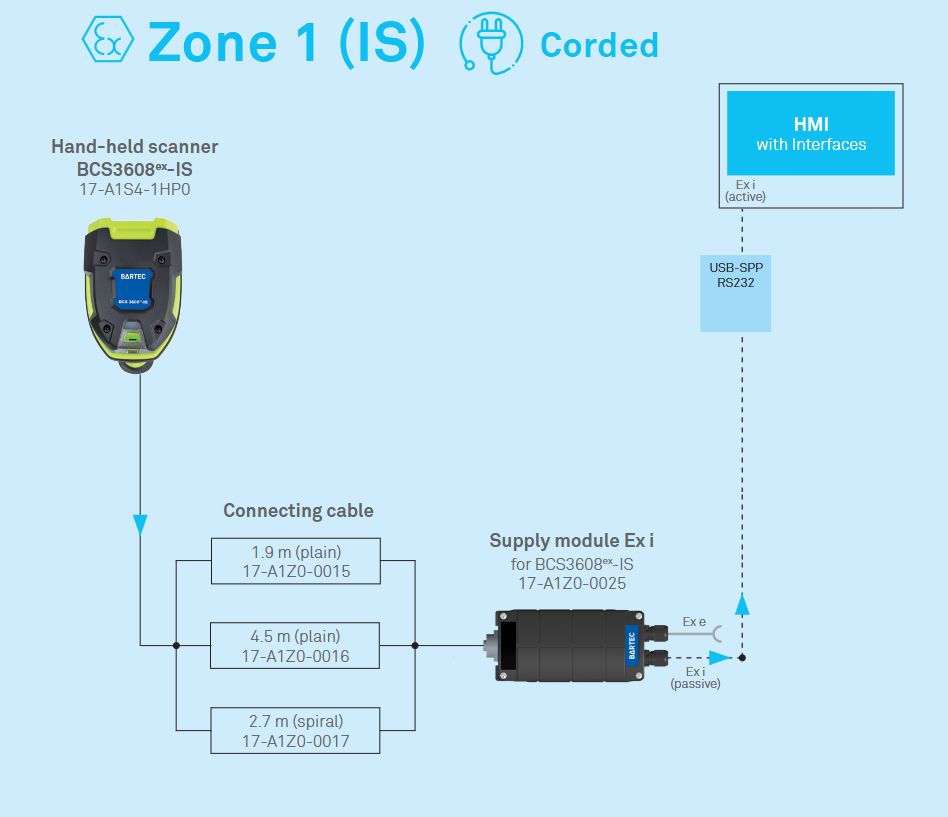

  • For intrinsically safe supply of the BCS3608ex scanner.
  • The corded scanner is connected to the module via a connection cable.
  • The power supply of Ex i module is in Ex e schema.
  • The data communication interface is in Ex i (passive) schema.

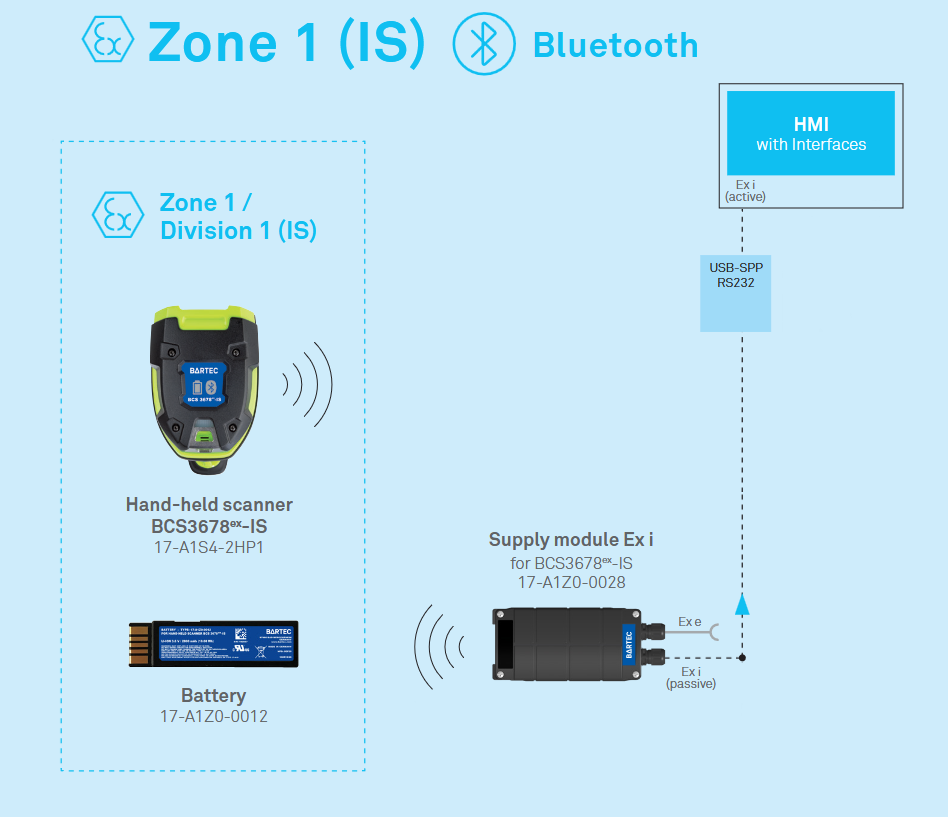

  • For Bluetooth connection to the BCS3678ex scanner.
  • The power supply of Ex i module is in Ex e schema.
  • The data communication interface is in Ex i (passive) schema.

Supported interfaces:

  • USB-SPP (opens a virtual serial COM port)
  • RS232

The cables for the power supply and data communication are not provided by BARTEC.

Certifications:
  • ATEX Zone 1/21
  • IECEx Zone 1/21
  • local certifications
For details see the product homepage



How can I check if the BCS36x8ex-IS is compatible with my system?

Please read the BARTEC user manual for more information.

Reference chapters.

  • 4.4.2 Connection of supply module Ex i to other Ex systems

This chapter describes the Ex-relevant parameters that are relevant for connecting the supply module Ex i to another Ex-system.

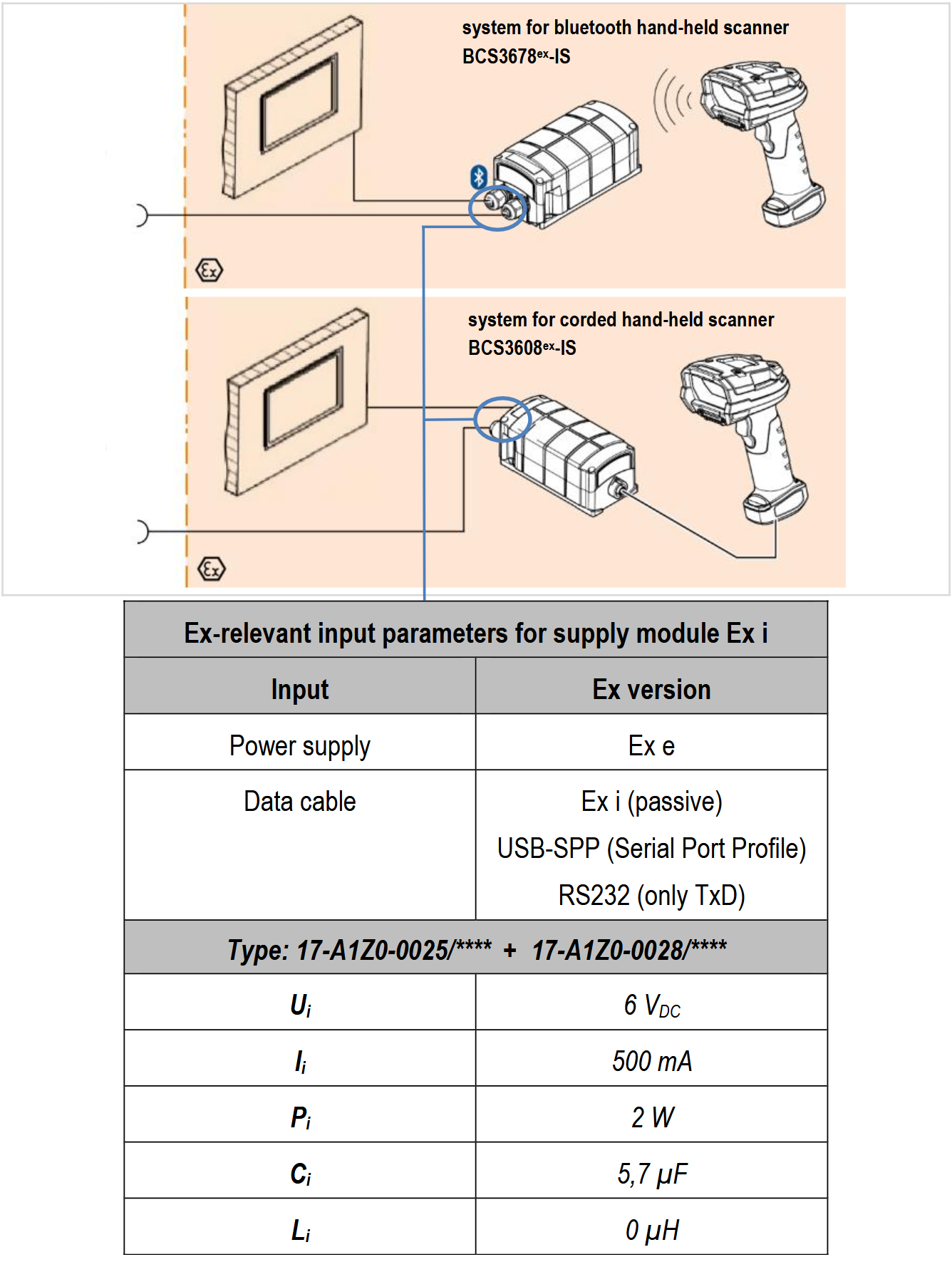

The following table contains all the explosion-related data needed to verify compatibility.

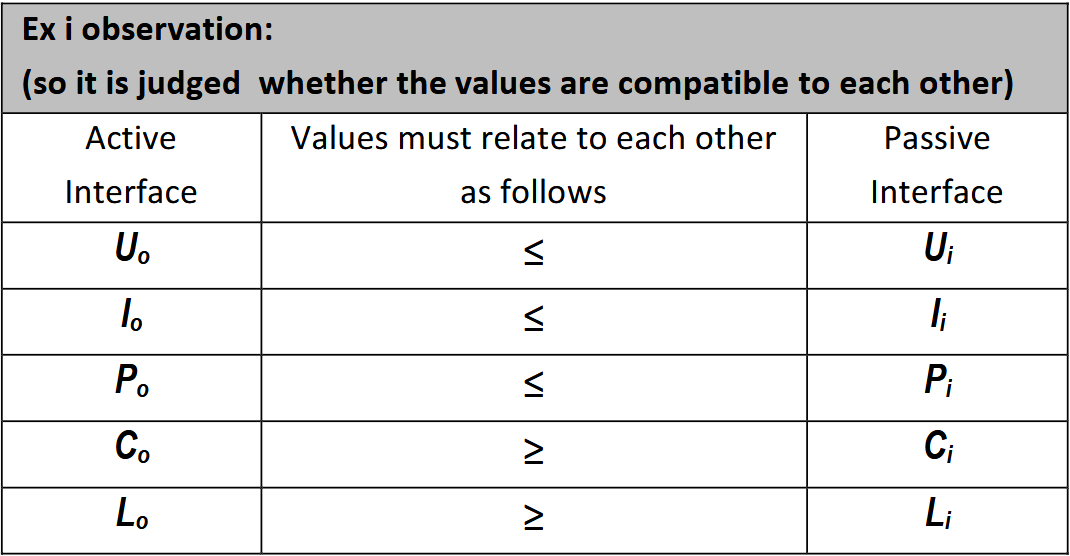

It also includes a comparison of how the values should relate to one another.
